Sample documents

    What your team opens at the station

    Every shop keeps its own setup knowledge. In JobLine.ai it lives on the work order, branded with your shop, and opens on the machine the operator is standing at. These are samples — proprietary details are fictional.

    View sample travelerSign in to your shop
    JobLine.ai

    Setup Sheet · BRACKET REV C · OP20

    WO E2E-WO-1042 · VMC-02 · Rev C · Controlled document

    Visible to your org only

    Work offsets

    G54 X
    -14.8720
    G54 Y
    -7.1155
    G54 Z
    0.0000 (top of part)
    G54 A
    0.000°

    Re-indicate the fixture after any crash or vise swap — the X offset drifts about .002" once the soft jaws are re-cut.

    Tooling list

    ToolDescriptionHolderStickoutSFMIPT
    T41/2" 4FL carbide end millCAT40 ER321.85"620.0028
    T7.201" screw-machine drillCAT40 ER161.40"310.0035
    T91/4-20 spiral-flute tapTension/comp2.10"60—
    T122" 5FL face millCAT40 shell2.60"780.0060

    Job instructions & quality checks

    • First article: full layout on 3 pcs — CMM program BRKT-C-OP20.
    • In-process: check the .750 bore every 5 pcs with a bore gage (.7500/.7515).
    • Deburr all cross-holes before tapping — burrs have caused tap breakage on this part.
    • Final: verify .030 R corner blend visually; no chatter marks on the sealing face.

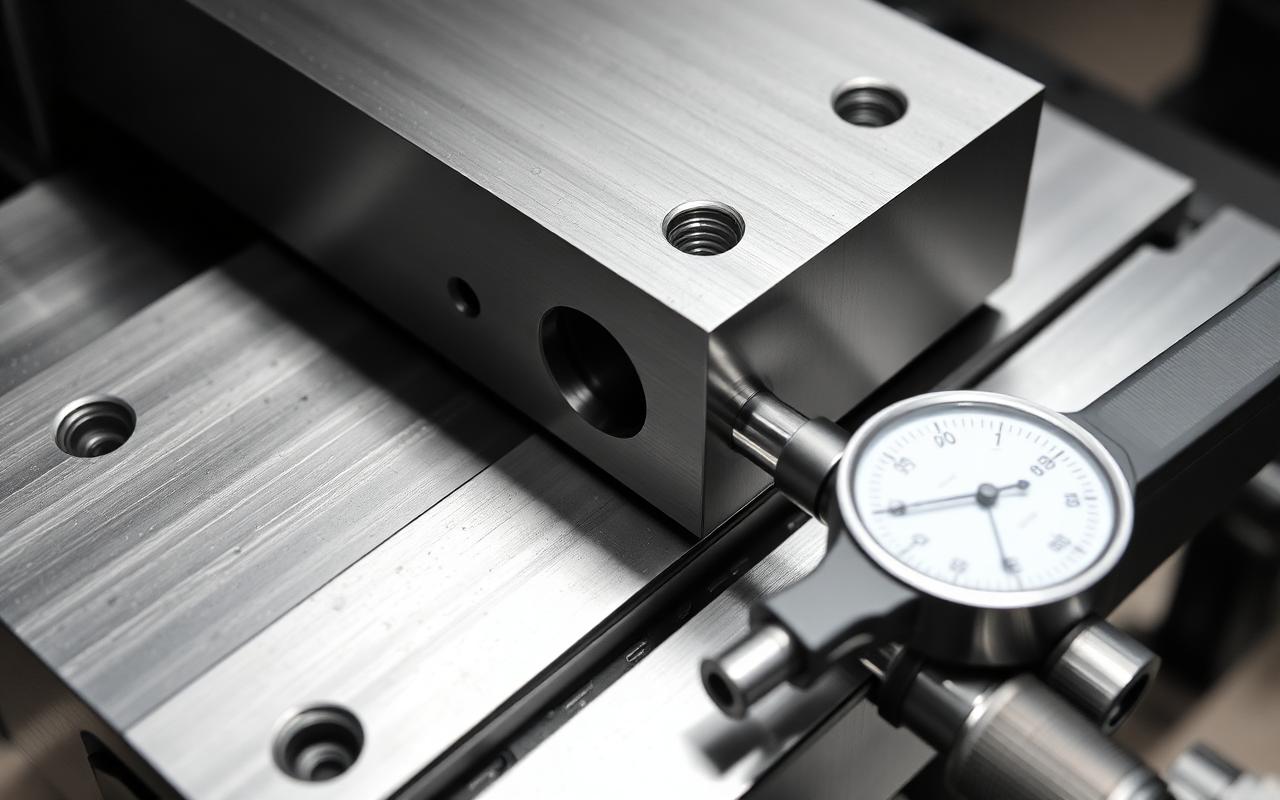

    Aluminum bracket clamped in a precision vise with an indicator on the part corner
    Fixture photo attached by the setup tech — parallels under the flange, indicator on the machined corner.

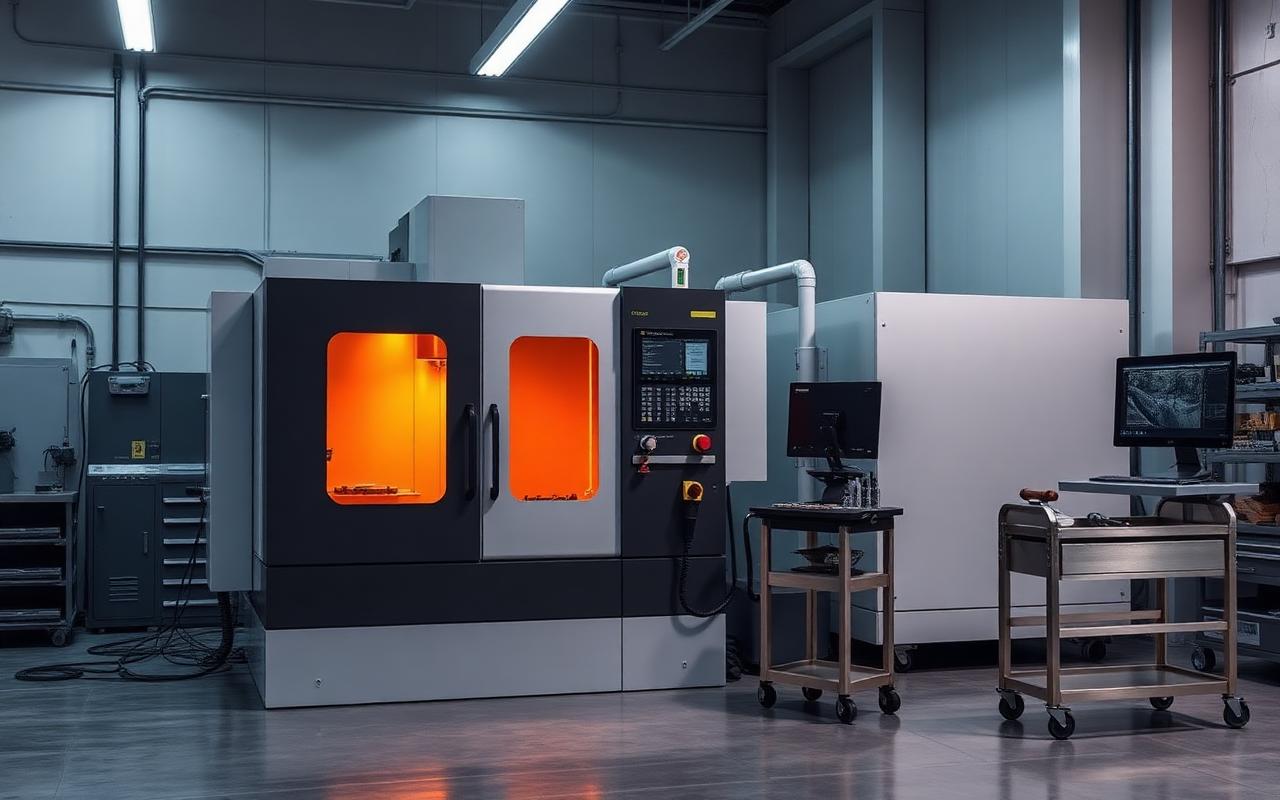

    Enclosed 3-axis CNC vertical machining center station with tool cart
    Station VMC-02 · 40-taper, 20-pocket carousel, 4th-axis ready.

    Station insights · Machine Connect

    When a control is wired to JobLine.ai, the same page shows true machine position and the executing G-code block, so a supervisor can tell where the job actually is.

    Machine Connect · VMC-02

    Haas control · Ethernet DNC drip · simulated sample data

    Connected
    Running
    x position
    -0.7500
    y position
    +0.6250
    z position
    +2.0000
    Spindle
    4,200 RPM
    Feed
    —
    Active tool
    T4
    Block
    N40
    Spindle load4%

    Station insight: G54 offset called — operators see why the machine paused, not just that it did.

    O01042 · BRACKET-REV-C · OP20Line 4 / 17
    N10O01042 (BRACKET REV C - OP20)
    N20G20 G17 G40 G49 G80 G90
    N30T4 M06 (1/2 4FL CARBIDE EM)
    N40G54 X-0.7500 Y0.6250 S4200 M03
    N50G43 H04 Z0.5000 M08
    N60G01 Z-0.1250 F12.0
    N70G01 X2.3750 F28.0
    N80G03 X2.6250 Y0.8750 R0.2500
    N90G01 Y3.1250
    N100G01 X-0.5000
    N110G00 Z0.5000 M09
    N120T7 M06 (0.201 DRILL)
    N130G54 G00 X0.8750 Y1.8750 S2600 M03
    N140G83 Z-0.7500 Q0.1250 R0.1000 F9.0
    N150X1.8750
    N160G80 G00 Z2.0000 M09
    N170M30
